- Designed for heavy duty use with minimal servicing these are ideal for use in the automotive, aerospace and engineering sectors

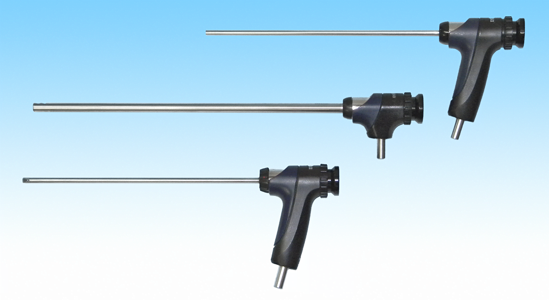

- Our standard range of rigid endoscopes incorporate high resolution fully coated precision lens relay optics in a rugged stainless steel insertion shaft
- Ergonomic comfort handgrip available as standard in finger body, or full handle styles
- Stainless steel insertion shaft. Impervious to most industrial fluids, fuels and water
- High resolution fully coated precision lens relay optics
- No inverted or mirror images - Standard working length increments have a corrected image
- Micro Quartz image fibre instruments can be made to any working length requirement
- Custom Design Service Available
- All servicing / repairs carried out at Endoscan UK Factory
- Supplied in fitted case
- Diameters 5.5mm - 10mm. Shaft working lengths up to 2 metres
- 30k and 50k pixel micro quartz image fibre relays also available. Ideal for longer lengths
- Viewing directions 0° forward, 30°, 45°, 65° fore-oblique, 90° lateral and 110° retrograde
- Economy mirror tips and mirror over-sleeves available to fit 0° forward view instruments
- Orbital scan shaft rotation is optional for all fore-oblique, lateral and retrograde views
- Standard 5.5mm - 10mm diameter instruments feature relay lens optics and heavy gauge stainless steel insertion tubes
- Adjustable fine focus control 5mm-infinity. Photo adaptable 32mm BS. Solid eyecup
- BS/ACMI male lightsource connector, with fitted female adaptor
- Integral high intensity white light fibre-optic light transmission guide
- Other directions and fields of view possible
- Exact working lengths vary according to model diameter and direction of view
Diameter mm
Working Length
Range mm
Range mm
Fields of View
Directions of View
5.5 - 6
130 - 1004
30° / 55°
0°/45°/65°/90°
8
226 - 1920
30° / 55°
0°/30°/45°/ 65°/90°/110°
10
226 - 1920
30° / 55°
0°/30°/45°/ 65°/90°/110°
For more information or a brochure, please use our contact form
