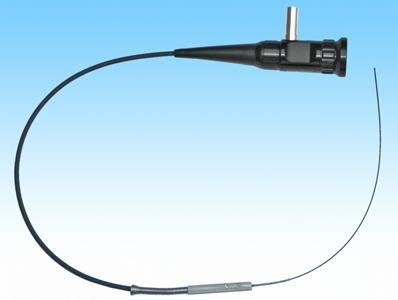

- Ideal for the inspection of precision engineered components and castings where probe flexibility is required
- These endoscopes are manufactured with high resolution micro quartz image fibre relay systems
- Tough polymer outer casing ensures that these are durable as well as flexible to give optimum working life
- Compact body design with industry standard 32mm eyepiece fitted with fine focusing adjustment ring

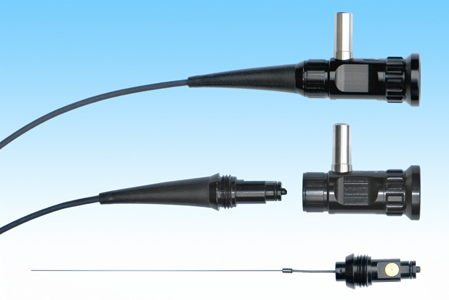

- Interchangeable shafts with fully flexible polymer outer casing
- Designed for minimal regular servicing requirements
- Integral high intensity white light fibre optic transmission guide
- Optional choice of supply with knurled finger grip to give greater probe control and rotation capability
- Custom design and manufacturing service available for special features, intermediate diameters and extended lengths
- All manufacturing / servicing / repairs carried out at Endoscan UK factory
- Supplied in carry case
- Working length tailored to your requirements
- Image system: High resolution micro quartz fibre
- Flexible covering material: PTFE or braided polyimide (Polyimide available for selected sizes)
- Direction of view: 0°. forward or 90°. side viewing
- Depth of field: choice of either close focussing or far focussing
- Light guide fitting: BS/ACMI male light source connector fitted with female adapter
- 90° side viewing versions for most diameters (not 70° field of view)
- Diameters 4mm or larger also available
Diameter mm
Direction of View
Standard Range
of Lengths mm
of Lengths mm
Field of View
0.50
0°
50 - 300
40° or 60°
0.60
0° & 90°
50 - 300
40° or 60°
1.00
0° & 90°
50 - 1000
50° or 70°
1.40
0° & 90°
50 - 1000
40° or 60°*
50° or 70°*
50° or 70°*
2.00
0° & 90°
100 - 2000
40° or 60°*
50° or 70°*
50° or 70°*
2.50
0° & 90°
100 - 2000
40° or 60°*
50° or 70°*
50° or 70°*
3.00
0° & 90°
200 - 3000
40° or 60°*
50° or 70°*
50° or 70°*
* Availability depends on image fibre selection
For more information or a brochure, please use our contact form
