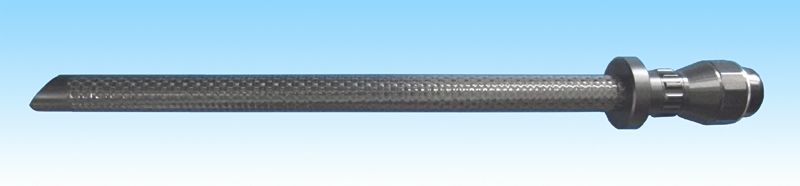

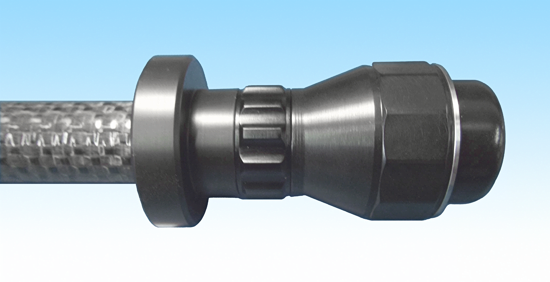

Special non metallic rigid endoscope
Special non metallic rigid endoscope developed to monitor patients inside a magnetically shielded room.
Key features
- 20 mm diameter x 320 mm long
- 45 degree direction of view
- 30 degree field of view

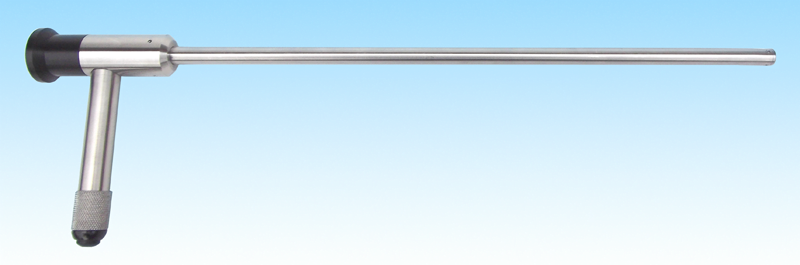

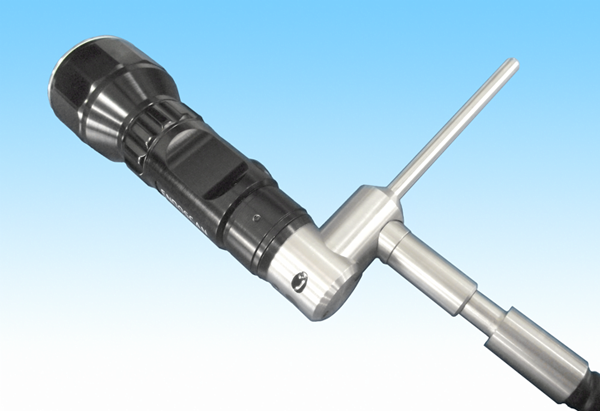

Special 5.5 mm diameter rigid endoscope for research purposes
Special 5.5 mm diameter rigid endoscope for research purposes.
Key features
- C mount coupler at right angle to insertion tube
- 70 mm working length
- 60 degree field of view

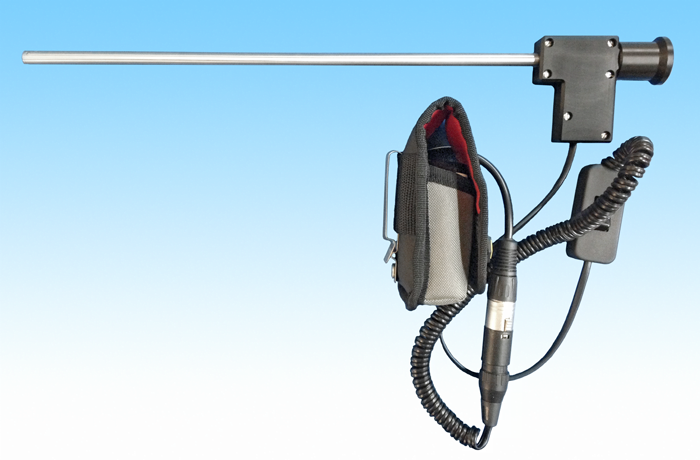

New surveyors endoscope
New Surveyors endoscope with LED illumination powered by long life rechargeable battery providing 6 hours continuous use. Economical and robust it is ideal for the inspection of wall cavities, under floor boards and other inaccessible areas.
Key features
- 9.8 mm diameter insertion tube
- Fixed focus
- 335 mm working length
- 90 degree side viewing
- Supplied in compact case for ease of transport and use on site
Also available powered by 6V disposable battery with shorter 324 mm length.
Office relocation
Please note that as from 1st March 2016 the offices are relocating to the factory address:-
Unit 2 Avocet Industrial Estate
Victoria Gardens
Burgess Hill
West Sussex
RH15 9NH
Sales: 01323 371791
Phone: 01444 871488
Facsimile: 01444 239111
Website: www.endoscan.co.uk
Email: sales@endoscan.co.uk

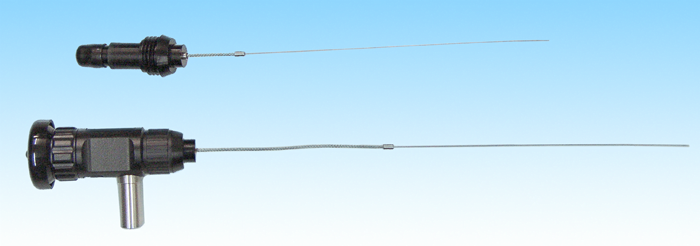

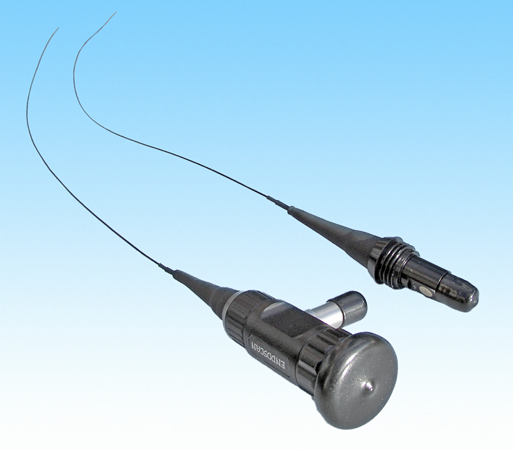

New micro rigid and flexible endoscopes
0.46 mm OD Rigid Micro with same optical properties as our 0.5 mm OD instrument but with the capability to enter 0.5 mm diameter openings.
0.6 mm OD Flexi Micro with 90 degree lateral side view.
Both items can be supplied with knurled finger grips with strain relief springs permitting +/- 150° rotation.
Both ideal for inspecting precision cast items such as aero engine/gas turbine blades.

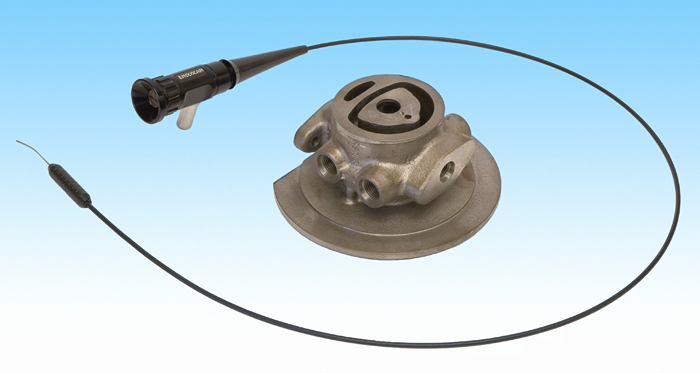

Endoscopes for the inspection of castings
New 2.35 mm diameter micro quartz endoscope with shaped insertion tube, finger grip and flexible bending section.
Optional hardened tip ring to reduce lens wear.
Specifically designed for the inspection of turbocharger housings and gas turbine flame tubes for grit debris.

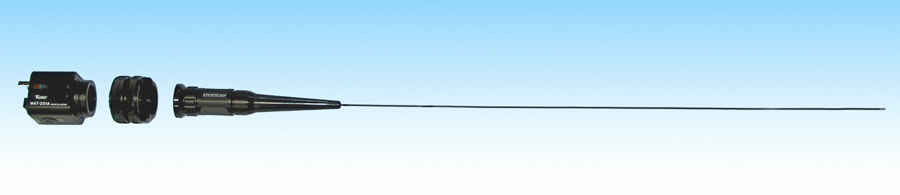

Viziscope special surveillance endoscope
Viziscope special surveillance endoscope is the flexible solution for discreet remote viewing is now available in 1 mm diameter.
Key features
- High resolution quartz fibre
- 0 degree forward view
- 60 degree field of view
- 600 mm long
- Fully flexible construction with polymer outer
- No illumination for covert operations
- Complete with fitted case
Ideal for use with Endoscan under door narrow profile far viewing infrared illumination board for discreet viewing of rooms, cavities and voids.
