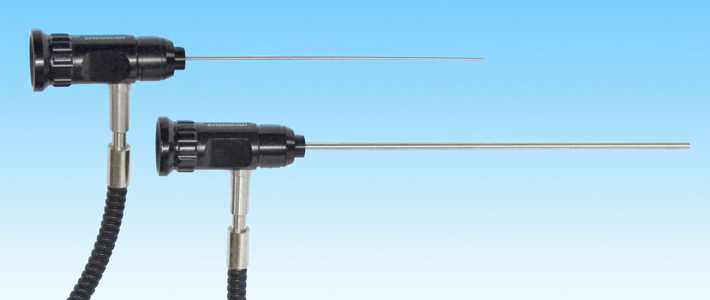

Micro rigid rod lens endoscopes
Key features
- Our standard range of rigid rod lens instruments are of particular interest for applications where a higher resolution image is required, but access size is severely restricted
- High Resolution rod lens image relay
- Designed for minimal regular servicing requirements
- Custom design service available
- All servicing / repairs carried out at Endoscan UK factory
- Supplied in fitted case
Technical details
- Diameters 0.9 - 4mm. Shaft working lengths 55mm up to 215mm
- Directions of View 0°, 65°, 90°
- Field of View 50°
- Mirror over-sleeves available to fit 0° forward view instruments, providing a 90° side view
- Compact designed control body. Photo adaptable 32mm BS. Solid eyecup
- Dioptre focus. Depth of field from 5mm - infinity
- Integral high intensity white light fibre-optic light transmission guide
- BS/ACMI male Lightsource connector, with fitted female adaptor
| Diameter mm | Working Length mm | Direction of View |
|---|---|---|
| 0.9, 1.0 | 55 | 0° / 65° / 90° |
| 1.5 | 60 | 0° / 65° / 90° |
| 1.5 | 90 | 0° / 65° / 90° |
| 1.5 | 120 | 0° / 65° / 90° |
| 2.0, 2.4, 2.7, 3.0 | 65 | 0° / 65° / 90° |
| 2.0, 2.4, 2.7, 3.0 | 110 | 0° / 65° / 90° |
| 2.0, 2.4, 2.7, 3.0 | 155 | 0° / 65° / 90° |
| 2.0, 2.4, 2.7, 3.0 | 200 | 0° / 65° / 90° |
| 4.0 | 62 | 0° / 65° / 90° |
| 4.0 | 115 | 0° |
| 4.0 | 130 | 0° / 65° / 90° |
| 4.0 | 195 | 0° / 65° / 90° |
| 4.0 | 215 | 0° |
For more information or a brochure, please use our contact form
